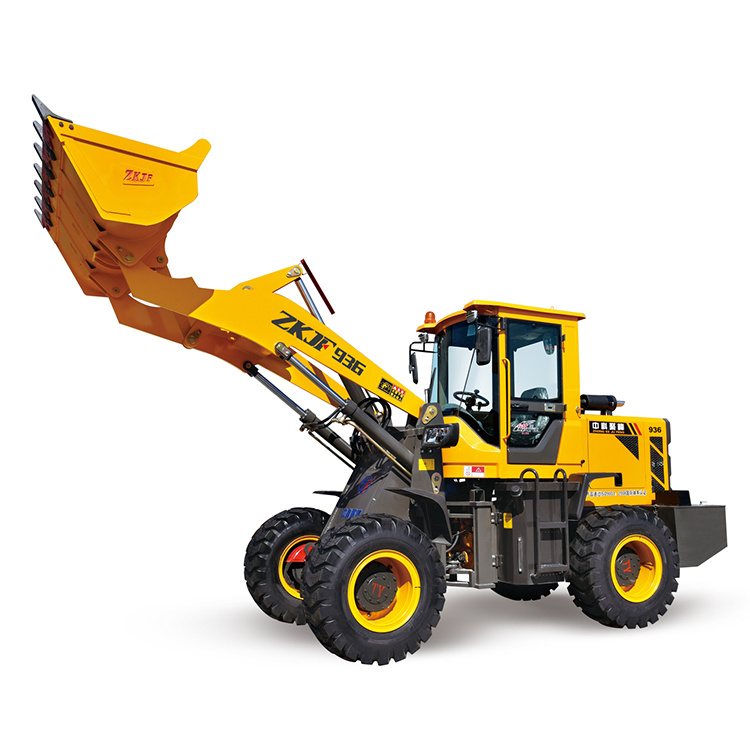

MODEL ZKJF936 WHEEL LOADER (2 TONS)
Product Introduction
Model ZKJF936 wheel loader is a kind of unique vehicle with bucket loading capacity of 2 tons. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 5.5 meters only.
Features:
* Powerful breakout force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.
* Air-over-oil assist caliper braking system.
* Split type torque converter, not easy to overheat, easy maintenance.
* Leaning-forward front frame, long dumping distance, high raising weight.
* Optional engine: HF, YUNNEI, YUCHAI or CUMMINS is available.
* Electronic flameout, automatic power off, no knife-switch.
|
Bucket |
|
|
Rated Load |
2000 Kg |
|
Bucket Capacity |
1.2 M3 |
|
Bucket Width |
2000 mm |
|
Dumping Height |
3500 mm |
|
Dumping Reach |
1000 mm |
|
Engine |
|
|
Model |
CHANGFA, 4102 Turbo Charged |
|
Rated power / Rated Speed |
78 KW / 106 HP |
|
Emission standard |
Euro II |
|
Chassis |
|
|
Structure |
Articulated chassis |
|
Articulation angle |
35 degrees |
|
Transmission gear |
Automatic, 4F+ 4R shift |
|
Driving & steering |
4-Wheel drive (4x4), hydraulic articulated steering |
|
Wheelbase |
2550 mm |
|
Tread |
1580 mm |
|
Axles |
Medium wheel-side reducer driving axle |
|
Torque Converter |
YJ265(Split type) |
|
Brake |
Air brake |
|
Tyre size |
Off road steel cord type, 16/70-20 |
|
Cabin |
|
|
Type |
ROPS & FOPS type |
|
Air conditioning system |
Optional |
|
Vehicle |
|
|
Min. turning radius |
5.5 m |
|
Min. ground clearance |
400 mm |
|
Operating weight |
5300 Kg |
|
Overall size (L×W×H) |
6150 x 2050 x 2950 mm |
|
Optional accessories: |
|
|
HF Engine (75 KW), YUNNEI (76 KW), YUCHAI (78 KW), CUMMINS (75 KW) |
|
|
Hydraulic Joystick |
|
|
Air Conditioner in side cabin |
|
Note:
The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement.
Our advantages:
Our wheel loader works through a brutal test of Chinese construction sites, and we have full confidence in our machines to be with best quality and high efficiency. We believe that our wheel loader may bring excellent experience for you.
Our services:
Warranty: one year
