1.6 TON Model ZKJF928 Wheel Loader

Product description

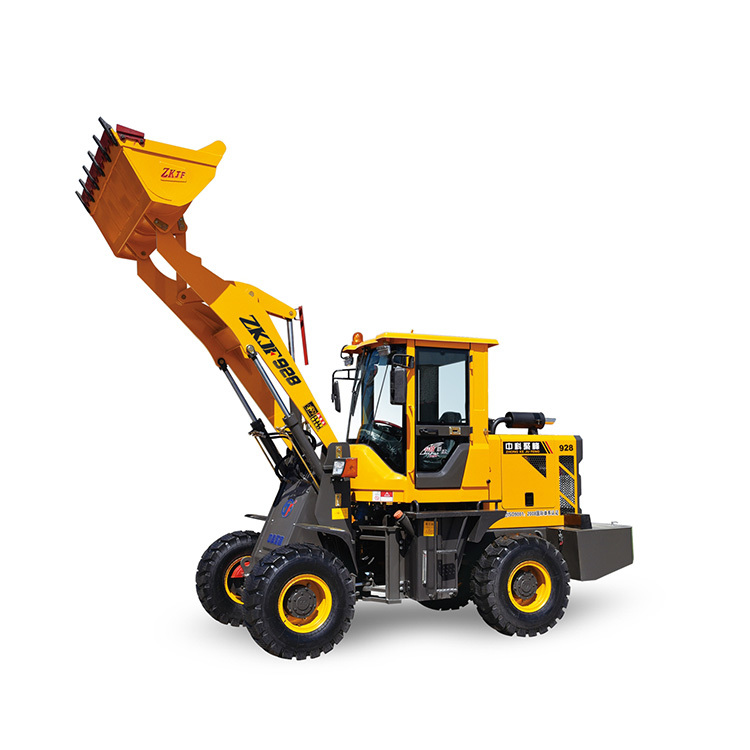

MODEL ZKJF928 WHEEL LOADER (1.6 TONS)



Product Introduction



   Model ZKJF928 wheel loader is a kind of unique vehicle with bucket loading capacity of 1.6 tons. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 4.0 meters only.



Features:



* Powerful breakout force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.

* Air-over-oil assist caliper braking system.

* Split type torque converter, not easy to overheat, easy maintenance.

* Leaning-forward front frame, long dumping distance, high raising weight.

* Optional engine: CHANGFA or CUMMINS is available.

* Electronic flameout, automatic power off, no knife-switch.



Bucket

Rated Load

1600 Kg

Bucket Capacity

0.8 M3

Bucket Width

1800 mm

Dumping Height

3500 mm

Dumping Reach

900 mm

Engine

Model

YUNNEI, 490, Turbo Charged

Rated power / Rated Speed

55 KW / 75 HP

Emission standard

Euro II

Chassis

Structure

Articulated chassis

Articulation angle

35 degrees

Transmission gear

Automatic, 4F+ 4R shift

Driving & steering

4-Wheel drive (4x4), hydraulic articulated steering

Wheelbase

2170 mm

Tread

1510 mm

Axles

Small wheel-side reducer driving axle

Torque Converter

YJ240 (Split type)

Brake

Air brake

Tyre size

Off road steel cord type, 20.5/70-16

Cabin

Type

ROPS & FOPS type

Air conditioning system

Optional

Vehicle

Min. turning radius

4.0 m

Min. ground clearance

300 mm

Operating weight

4700 Kg

Overall size (L×W×H)

5500 x 1850 x 2800 mm

Optional accessories:

CHANGFA Engine (58 KW), CUMMINS (60 KW)

Hydraulic Joystick

Air Conditioner in side cabin





Note:



The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement.



Our advantages:

Our wheel loader works through a brutal test of Chinese construction sites, and we have full confidence in our machines to be with best quality and high efficiency. We believe that our wheel loader may bring excellent experience for you.



Our services:

Warranty: one year
