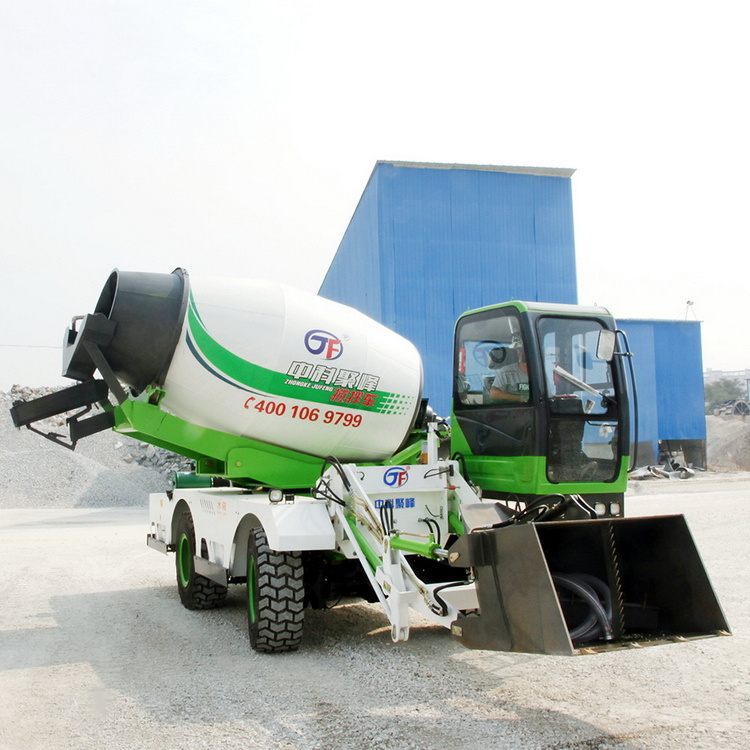

4.0 CBM Model CMT4000 Self Loading Concrete Mixer Truck



contact now

Product Details




Product Introduction


        Model CMT4000 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features automatic calculating the proportion of mixing materials, the concrete output ability is 16 cube meters per hour. Front 2-wheel steering driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 32 km/hour, and the min. turning radius is about 7.5 meters.

        CMT4000 is equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, cooling & heating air conditioner, electronic hydraulic weighing system, automatic lubricating system, and imported piston motor etc. The mixing drum is lifted up 20° by two hydraulic cylinders at bottom for high discharge over 2.0m in the front side of the vehicle.


* The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

* High strength steel plate, which enhances the load capacity and high stability of vehicle.

* The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

* Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.


Mixing unit

Double-cone drum with double spiral mixing screw, mixing blade and convex bottom

Geometrical drum volume

6.1 M3

Concrete output

4 M3 / batch, 16 M3 / hour

Drum rotation speed

17 rpm


Drum is rotated by means of dual gear pump and hydraulic piston motor in closed circuit. Mixing and discharging speed is independent from rpm of diesel engine. The discharging process is achieved by reversing operation of drum. The mixing drum is lifted up 20° by two hydraulic cylinders at bottom for high discharge over 2.0m in the front side of the vehicle.

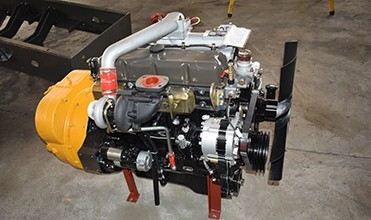

YUCHAI, YCD 4J22G, Turbo Charged and Water Cooled

(4-Cylinder) diesel engine

 Optional: Dongfeng Cummins

(4BTA3.9-C130, 97kw)

Rated power

85 KW (116HP) @ 2400 rpm  Max Torque: 390 N.M @2000 rpm

Mounting position

Engine is mounted transversally on the rear.

Emission standard

Euro II



Hydrostatic “automotive” transmission with gear pump and hydraulic motor with hydraulic control, and reverse gear control on the steering wheel. It is a kind of 4-wheel drive and 2-wheel steering. (4x4x2)


Automatic, 4F+ 4R shift


10-Ton payload reduction axle, with oil bath disk brakes and planetary reducers


4F+4R shift

1st: 0-3.7km/h; 0-3.7km/h

2nd: 0-9.5km/h; 0-3.7km/h

3rd:0-18km/h; 0-12.8km/h

4th:0-32.0km/h; 0-12.8km/h


The ROPS & FOPS type closed front cab is suited on side ofloading shovel. Air conditioner, tilting front window and anatomic seat with flexible suspension are available.


The function of drum mixing and arm lifting are controlled by one hydraulic joystick, and functions of drum revolving and lifting are controlled by another hydraulic joystick.


Italian brand “Bull Dozer” electronic weighing system is optional. The “loading cells” are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.

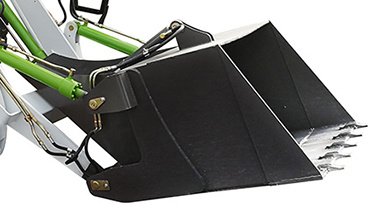

Loading shovel

It is fitted with serrated blade in the front and completed with hydraulic opening gate. The lifting arms are controlled by double-acting hydraulic cylinders.

Volumetric capacity


Number of shovel loading times of full drum

Around 7 times


Could be mechanically tilted and slewed at 90 degree by means of one adjustable handle. 2 pcs. of discharging chute extensions are provided as standard accessories.

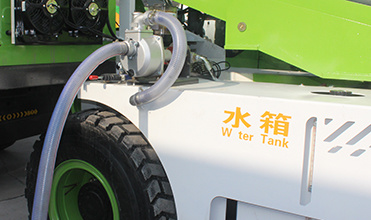

Water system


Self-priming hydraulic driven water pump with quick-suction.

Max. capacity

550 L/min.

Water tank

Two connected steel tanks are positioned opposite, with a total capacity of 2 x 330 L.


Fully loaded 40%


Air cap oil service brake. Internal oil-bath disc service acting on the 4 wheels. Negative hydraulic parking brake, with internal wheel hub discs on the front axle.


Off road industrial type, 16/70-20, PR14


Hydrostatic 2 front wheel steering

Min. Turning radius: 4000mm

Electric system





For electric starter and road lighting, safety battery cut-off

Service refill capacities

Fuel tank:


Total hydraulic system capacity:


Engine oil:



Integrated rigid chassis for off-road operation

Whole truck parameters

Overall dimensions (L×W×H)

7500 mm × 2850 mm × 3600 mm (4700 mm full height)


2400 mm


1820 mm

Whole truck no-load weight

9,200 Kg

Load-carrying capacity

9,600 Kg

Max. gross weight

18,800 Kg

Drive type

Torque converter

Top speed

32 km/h

Max. climbing degree


Min. turning radius

4000 mm

Hydraulic system

Dual gear pump for drum mixing and arm lifting

Flow rate: 80/40 ml/r

Walking gear pump for driving

Flow rate 25 ml/r

Hydraulic piston motor

Flow rate 56 cm3 / rev


Main hydraulic parts are imported.

Save five labors everyday

Save electricity 100 KWH without using agitator.

Save concrete transportation truck

Save wheel loader to fill in material

High resolution camera without blind area, ensure the driving safety.


Optional accessories:


* 290 degrees mixing drum slewing

* Dongfeng Cummins engine

* USA Cummins engine

* Italian Bulldozer Weighing device




The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement.


Section detail:

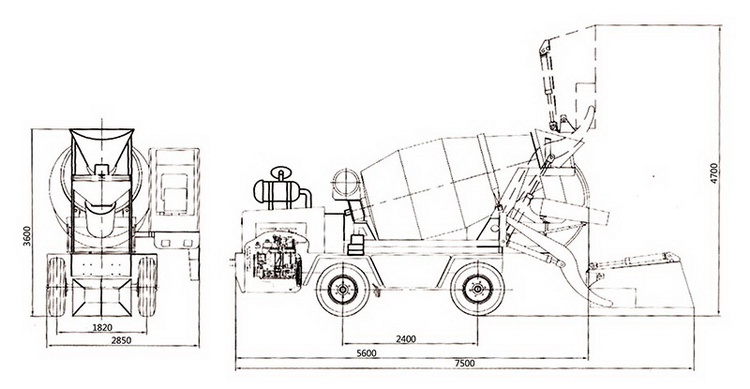

Overall dimensions:

Our advantages:

Our self-loading concrete mixer truck works through a brutal test of Chinese construction sites, and we have full confidence in our machines to be with best quality and high efficiency. We believe that our mixer truck could produce more and better concrete for you.


Our services:

Warranty: one year
