1.2 CBM Model CMT1200R Self Loading Concrete Mixer Truck
Category:
1017396089503703040
Features
Product Details
MODEL CMT1200R
SELF LOADING CONCRETE MIXER TRUCK (1.2 CBM)
Product Introduction

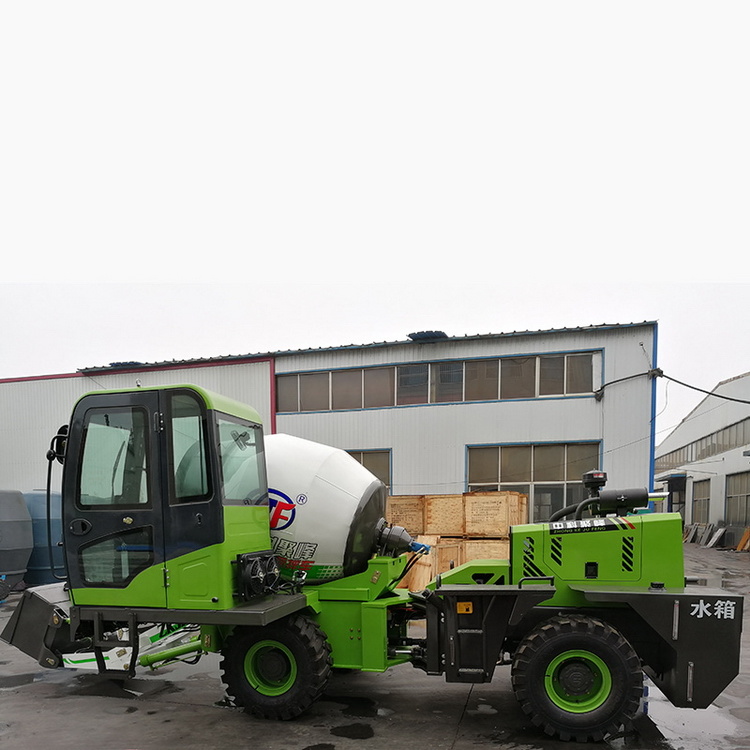

Model CMT1200R Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. The concrete output ability is 4.8 cube meters per hour. The wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 4.75 meters only.

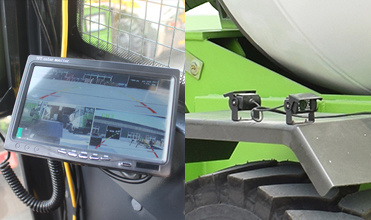

CMT1200R is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can be slewed hydraulically through 270 degrees for high discharge over 1.2m on the four sides of the vehicle. The drum can also be lifted up 16° by two hydraulic cylinders at bottom for the convenience of concrete discharge.
* The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
* High strength steel plate, which enhances the load capacity and high stability of vehicle.
* The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
* Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.
Mixing unit |
||
Double-cone drum with double spiral mixing screw, mixing blade and convex bottom |
||
Geometrical drum volume |
1.8 M3 |
|
Concrete output |
1.2 M3 / batch, 4.8 M3 / hour |
|
Drum rotation speed |
13 rpm |
|
Features |

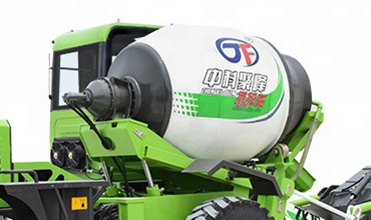

Drum is rotated by means of dual gear pump and hydraulic cycloid motor in open circuit. Mixing and discharging speed is independent from rpm of diesel engine. The discharging process is achieved by reversing operation of drum. The mixing drum can be slewed hydraulically through 270 degrees for high discharge over 1.2m on the four sides of the vehicle. The drum can also be lifted up 16° by two hydraulic cylinders at bottom for the convenience of concrete discharge. |
|
Engine |
||
Model |

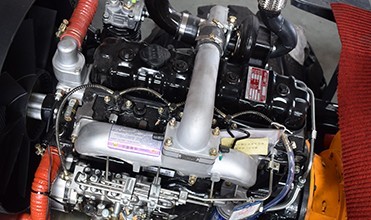

YUNNEI, YN27GBZ, Turbo Charged and Water Cooled (4-Cylinder) |
Optional: Dongfeng Cummins or Foton Cummins |
Rated power |
55 KW (75HP) @ 2400 rpm Max Torque: 230 N.M @2000 rpm |
|
Mounting position |
Engine is mounted transversally on the rear. |
|
Emission standard |
Euro II |
|
Transmission |
||
Model |
Hydrostatic “automotive” transmission with gear pump and hydraulic motor with hydraulic control. It is a kind of 4 wheel drive and articulated steering. |
|
Gear |
Automatic, 4F+ 4R shift |
|
Axles |
Small size wheel-side reducer driving axle, with oil bath disk brakes and planetary reducers |
|
Speed |
4F+4R shift |
|
1st: 0-3.0km/h; 0-3.0km/h |
||
2nd: 0-7.2km/h; 0-3.0km/h |
||
3rd: 0-10.0km/h; 0-10.0km/h |
||
4th: 0-25.0km/h; 0-10.0km/h |
||
Cabin |
The ROPS & FOPS type closed front cab is suited on side of loading shovel. Electric fan, tilting front window and anatomic seat with flexible suspension are available. A/C is optional upon request. |
|
Joymix |
The function of drum mixing, arm lifting, drum revolving and lifting are controlled by different hydraulic joystick and operating handles. |
|
Weighing |
Chinese brand electronic weighing system is optional upon request. The “loading cells” are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin. |
|
Loading shovel |
||

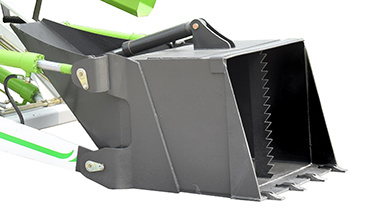

It is fitted with serrated blade in the front and completed with hydraulic opening gate. The lifting arms are controlled by double-acting hydraulic cylinders. |
||
Volumetric capacity |
500L |
|
Number of shovel loading times of full drum |
Around 3 times |
|
Chute |
Could be mechanically tilted and slewed at 90 degree by means of one adjustable handle. 1 pc. of discharging chute is fixed on drum and 1 pc. of 0.9m extension chute is provided as standard accessories. The length of extension chute is customizable. |
|
Water system |
||
Features |
Self-priming electric water pump with quick-suction. |
|
Max. capacity |
250 L/min. |
|
Water tank |

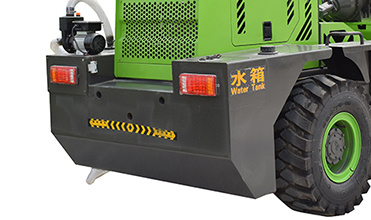

Two connected steel tanks are positioned opposite to each other, with a total capacity of 2 x 200 L. |
|
Gradient |
Fully loaded 40% |
|
Brakes |
Air cap oil service brake. Internal oil-bath disc service acting on the 4 wheels. Negative hydraulic parking brake, with internal wheel hub discs on the front axle. |
|
Tyres |
Off road steel cord type, 20.5/70-16 |
|
Steering |
Hydrostatic articulated system steering |
|
Mini. Turning radius: 4750mm |
||
Electric system |
||
Alternator |
28V-750W |
|
Battery: |
2x12V-80AH |
|
For electric starter and road lighting, safety battery cut-off |
||
Service refill capacities |
||
Fuel tank: |
63L |
|
Total hydraulic system capacity: |
63L |
|
Engine oil: |
16L |
|
Chassis |
Articulated chassis for off-road operation |
|
Whole truck parameters |
||
Overall dimensions (L×W×H) |
6400 mm × 2550 mm × 2450 mm (3750 mm full height) |
|
Wheelbase |
2300 mm |
|
Tread |
1550 mm |
|
Whole truck no-load weight |
4,500 Kg |
|
Load-carrying capacity |
2,900 Kg |
|
Max. gross weight |
7,400 Kg |
|
Drive type |
Torque converter |
|
Top speed |
25 km/h |
|
Max. climbing degree |
40° |
|
Min. turning radius |
4750 mm |
|
Hydraulic system |
||
Dual gear pump for drum mixing and arm lifting |
Flow rate: 50/32 ml/r |
|
Walking gear pump for driving |
Flow rate 20 ml/r |
|
Hydraulic cycloid motor |
Flow rate 125 ml/r |
|
Characters: |
||
Save three labors everyday Save electricity 100 KWH without using agitator. Save concrete transportation truck Save wheel loader to fill in material High resolution camera without blind area, ensure the steering safety. |
Optional accessories:
- Dongfeng Cummins engine
- Foton Cummins engine
- Electronic Weighing device
- Centralized greasing system
- Hydraulic water pump
- Air conditioner in cabin
- High pressure washer
Note:
The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement.
Section detail:

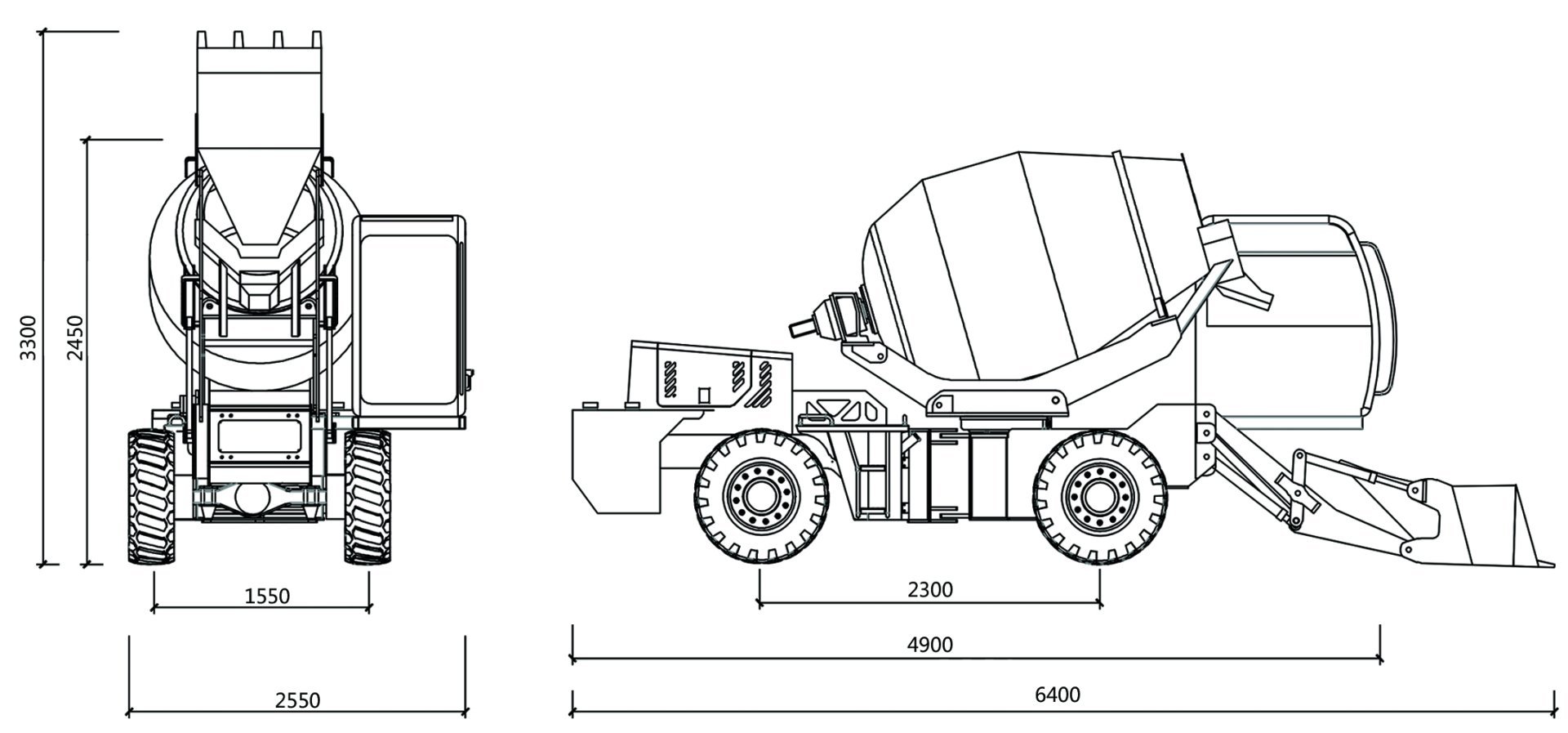

Overall dimensions:
