0.6 CBM Model CMT600 Self Loading Concrete Mixer Truck

Product description

MODEL CMT600

SELF LOADING CONCRETE MIXER TRUCK (0.6 CBM)



Product Introduction



        Model CMT600 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. The concrete output ability is 2.4 cube meters per hour. The wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 4.5 meters only.

        CMT600 is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum is lifted up 16° by two hydraulic cylinders at bottom for high discharge over 1m in the front side of the vehicle.



* The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
* High strength steel plate, which enhances the load capacity and high stability of vehicle.
* The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
* Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.





Mixing Drum

Mixing volume

0.6 M3

Geometrical volume

0.9 M3

Concrete output

0.6 M3 / batch, 2.4 M3 / hour

Drum rotating speed

13 rpm

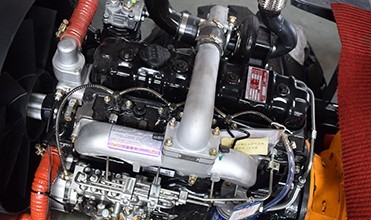

Engine

Brand

YUNNEI (Cummins Engine optional)

Model

YN27GBZ

Type

In-line, 4-Cylinder, Turbo Charged and Water Cooled,

Rated power

55 KW (75HP) @ 2400 rpm

Max torque:

230 N.M @2000 rpm

Emission standard

Euro II

Chassis

Structure

Articulated chassis

Transmission gear

Automatic, 4F+ 4R shift

Driving & steering

4-Wheel drive (4x4), hydraulic articulated steering

Wheelbase

2444 mm

Tread

1510 mm

Axles

Small size wheel-side reducer driving axle

Tyre size

Off road steel cord type, 20.5/70-16

Loading shovel & chute

Volumetric capacity

300L

Number of shovel loading times

of full drum

Around 2 times

Chute

2 pcs. of discharging chute extensions.

Manually rotating at 90 degree.

Cabin

Type

ROPS & FOPS type closed front cab

Joystick control

Double-joystick control the hydraulic system

Weighing system

Optional. The “loading cells” are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.

Air conditioning system

Optional

Water system

Max. water suction capacity

250 L/min. (Self-priming electronic water pump)

Water tank capacity

500 L.

Electric system

Alternator

28V-750W

Battery:

2x12V-80AH

Vehicle

Max. Driving speed

25.0km/h

Gradient

Fully loaded 40%

Min. turning radius

4.5m

Operating weight

4,200 Kg

Max. payload

1,400 Kg

Max. gross weight

5,600 Kg

Overall size (L×W×H)

6903 x 1810 x 2684 mm (3063 mm full height)

Service refill capacities

Fuel tank:

63L

Total hydraulic system capacity:

63L

Engine oil:

16L



Optional accessories:



  • +90 degree slewing drum
  • Dongfeng Cummins engine
  • Foton Cummins engine
  • Electronic Weighing device
  • Centralized greasing system
  • Hydraulic water pump



Note:



The above parameters are possible to change due to design improvement, so the parameters of your ordered machine may be different with the above information. Please accept it without advance notification for the parameters improvement.



Section detail:





Overall dimensions:



Our advantages:

Our self-loading concrete mixer truck works through a brutal test of Chinese construction sites, and we have full confidence in our machines to be with best quality and high efficiency. We believe that our mixer truck could produce more and better concrete for you.



Our services:

Warranty: one year
