3.0 TON Model ZKJF948 Wheel Loader

Category:


Features

contact now

Product Details

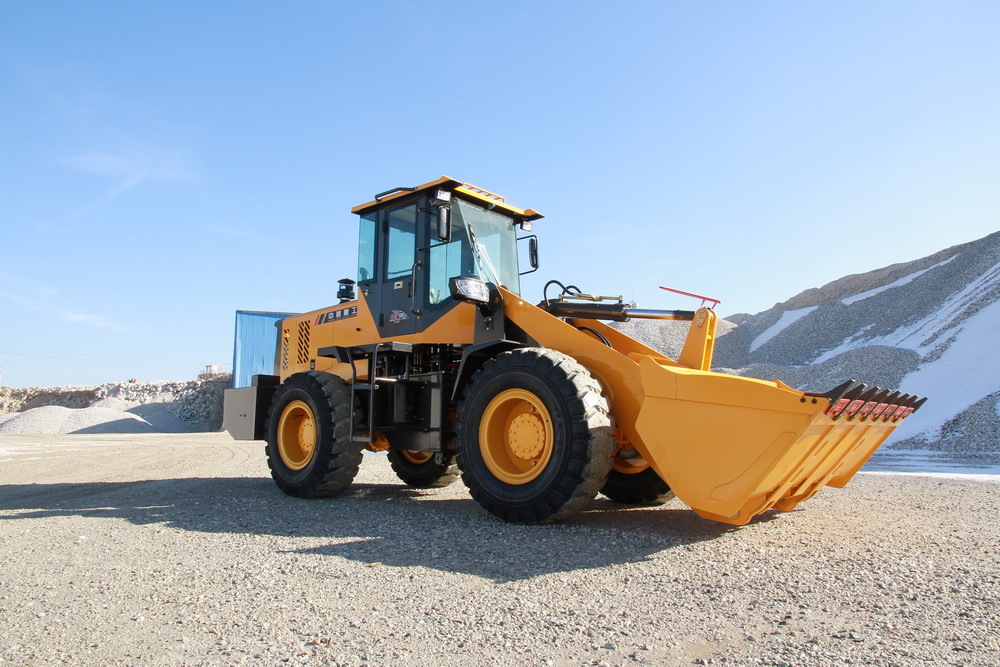

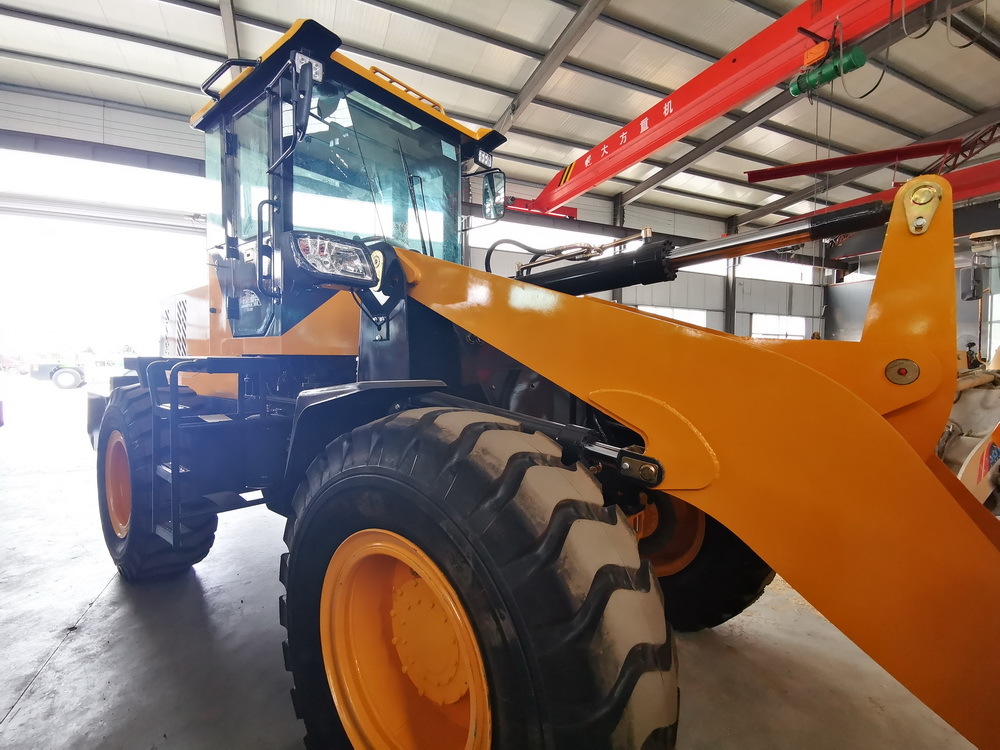

MODEL ZKJF948 WHEEL LOADER (3 TONS)



Product Introduction



 Model ZKJF948 wheel loader is a kind of unique vehicle with bucket loading capacity of3.0 tons. The wheel-side reducer driving axle and fullhydraulic transmission case make the vehicle move in any kinds of complex off roadways, it adopts articulated chassis and the min. turning radius is 6.5 meters only.



Features:



l  Powerful breakout force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.

l  Air-over-oil assistcaliper braking system.

l  Split type torque converter, not easy to overheat, easy maintenance.

l  Leaning-forward front frame, long dumping distance, high raising weight.

l  Optional engine: CUMMINS engine is available.

l  Electronic flameout, automatic power off, no knife-switch.



Bucket

Rated Load

3000 Kg

Bucket Capacity

1.8 M3

Bucket Width

2200 mm

Dumping Height

3700 mm

Dumping Reach

1000 mm

Engine

Model

DEUTZ, 6105Turbo Charged (Cummins Engine optional)

Rated power / Rated Speed

92 KW

Emission standard

Euro II

Chassis

Structure

Articulated chassis

Articulation angle

35 degrees

Transmission gear

Automatic, 4F+ 4R shift

Driving & steering

4-Wheel drive (4x4), hydraulic articulated steering

Wheelbase

2850 mm

Tread

1750 mm

Axles

Outsize wheel-side reducer driving axle

Torque Converter

YJ315 (Split type)

Brake

Air brake

Tyre size

Off road steel cord type, 17.5-25

Cabin

Type

ROPS & FOPS type

Air conditioning system

Optional

Vehicle

Min. turning radius

6.5 m

Min. ground clearance

460 mm

Operating weight

8000 Kg

Overall size (L×W×H)

7260 x 2250 x 3100 mm

Optional accessories:

CUMMINS Engine (6BT5.9-C130, 97 KW)

Tyre: 17.5-25

Hydraulic Joystick

Air Conditioner in side cabin





Note:



The above parameters are possible to change due to design improvement, so the parameters of your ordered machine maybe different with the above information.Please accept it without advance notification for the parameters improvement.



Our advantages:

Our wheel loader works through a brutal test of Chinese construction sites,and we have full confidence in our machines to be with best quality and high efficiency. We believe that our wheel loader could bring excellent experience for you.



Our services:

Warranty: one year
